41018593

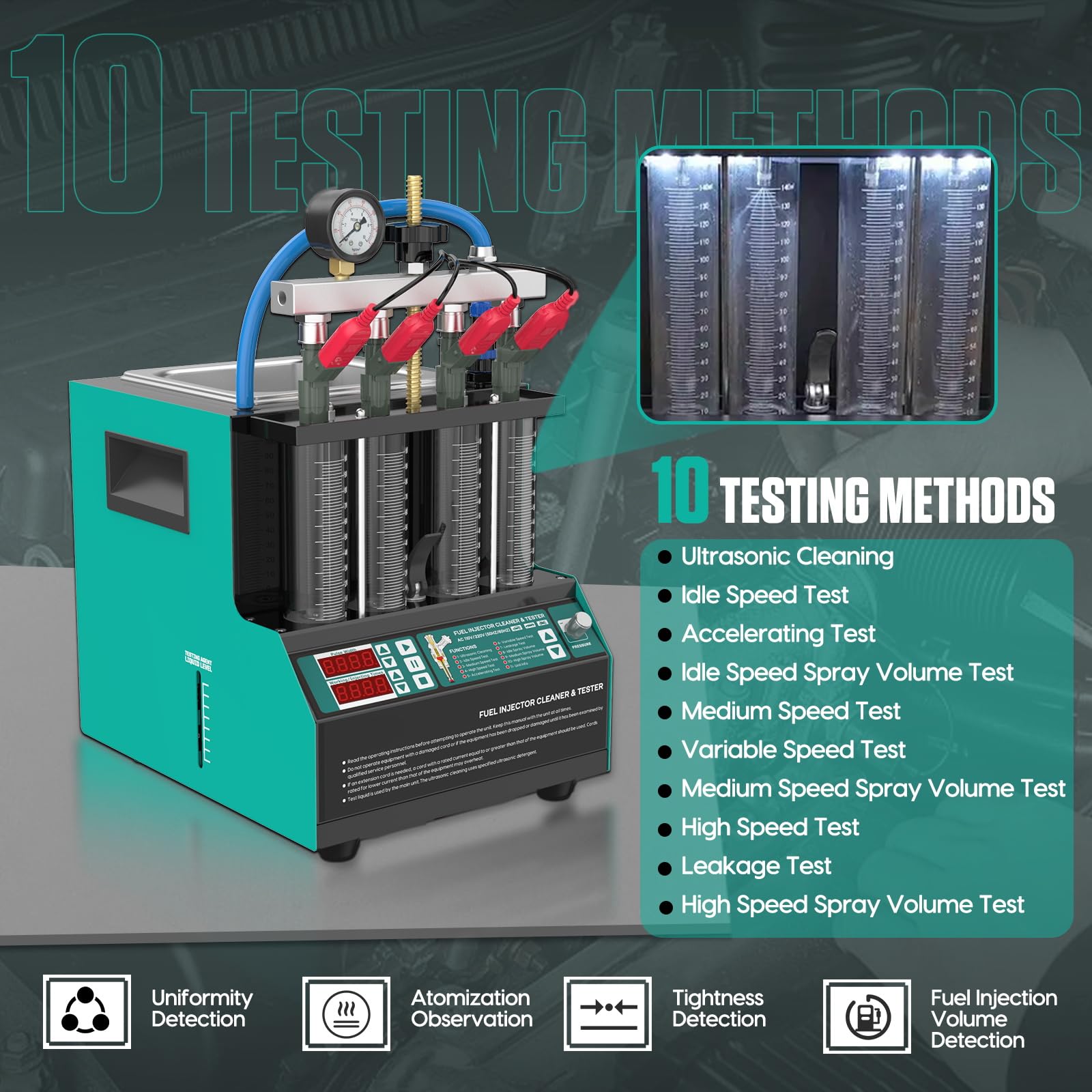

10 test methods Ultrasonic cleaningWobble testAcceleration testTest of the spray volume at low speedMedium speed testVariable speed testSpray volume test at medium speedHigh speed testLeakage testHigh speed spray volume test Uniformity detection: To detect the uniformity of the injection volume of each syringe. Atomization observation: Use the backlight to observe the spray atomization of the nozzle. Tightness detection: It can detect the tightness and dripping of the fuel injection nozzle under high pressure. Fuel injection volume detection: It can detect the fuel injection volume of the injector under certain working conditions (e.g. at the same time and the same number of times). COMPATIBLE WITH DIFFERENT TYPES OF INJECTORS Can clean and test normal injectors, GDI injectors, EFI injectors and FSI injectors.Suitable for Mercedes-Benz, BMW, Audi, Ford and other direct injection engines. WIDE RANGE OF APPLICATIONS Supports most cars and motorcycles on the market for fuel injector testing SMART CONTROL PANEL The intuitive and user-friendly control panel offers seamless interaction and enables personalized control and automation for efficient operation. SAVING AND THE ENVIRONMENT Cleaning and test fluids are recycled and reused to avoid waste. TECHNICAL PARAMETERS Tank capacity: 1300mlRotation range: 0-7500rpmPWM pulse width: 0 ~ 20.0ms 0.1ms stepTime: 0~20 minutesCleaning frequency: 40kHzVolume of the cylinder: 180mlInjection timing: 0 ~ 9900 times, 100ms stepSystem pressure: 0 ~ 0.6MPaUltrasonic cleaning power: 70WPackage dimensions: 340 x 295 x 360mmPower supply: AC 110/220V ±10Frequency: 50/60Hz ±0.5Relative humidity: <85Ambient temperature: 0℃～＋40℃External magnetic field strength: <400A/m PAKETLISTE 1 x fuel injector diagnostic device12 x Moto Top oil inlet plugs (10,10.6,11mm)4 x adapter cables1 pair x locking pin and nut4 x Auto Top oil inlet plugs (10.6,13.4mm)1 x test pad1 x Ultrasonic cleaning stand4 x extension plugs1x signal cable2x oil drain valve3 x plugs1 x oil rail1 x funnel

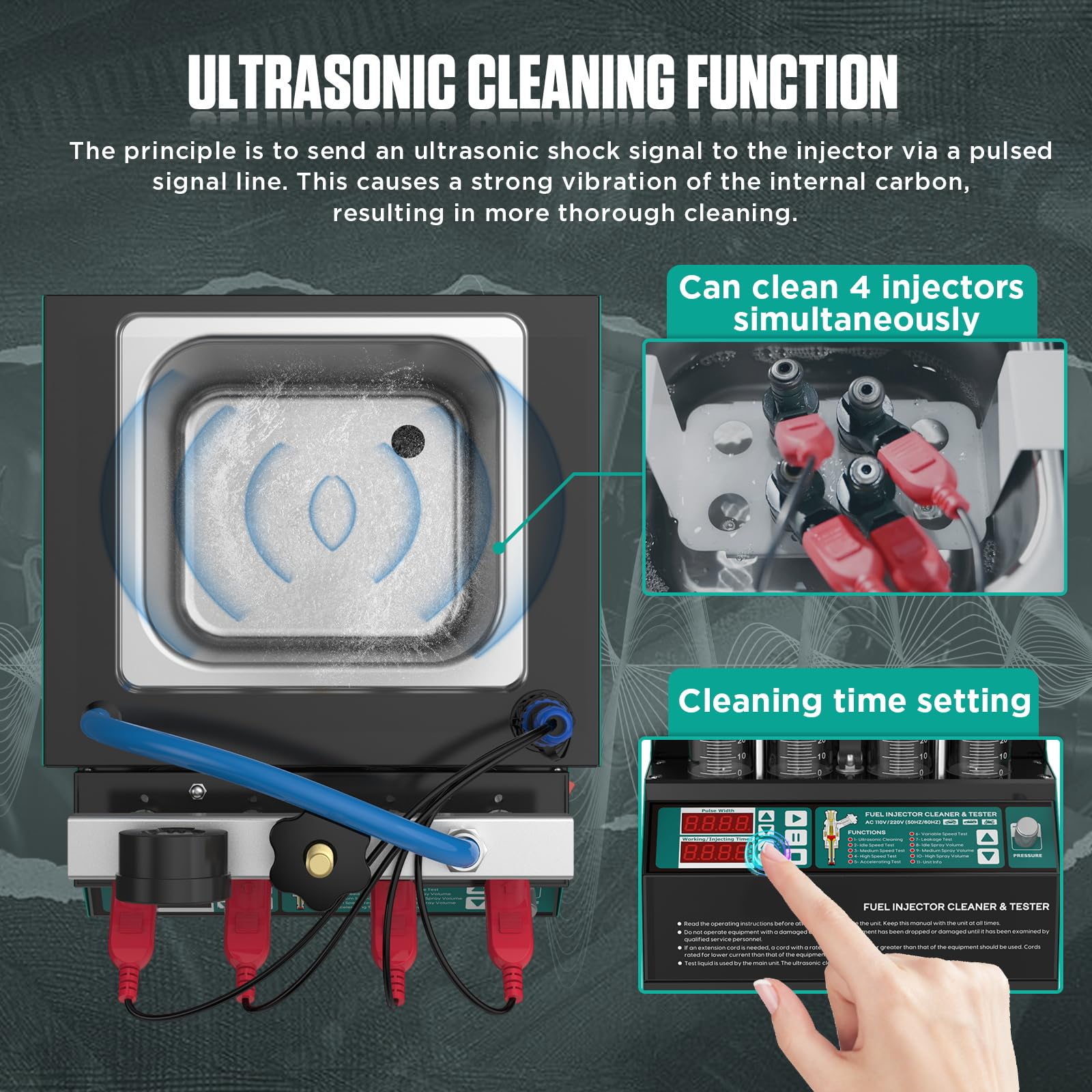

Ultrasonic Cleaning - The Injection Diagnostic Cleaner is a mechatronic product that combines ultrasonic cleaning technology with microcomputer hydraulic circuit control, cleaning and testing technology. It has an ultrasonic basin for cleaning the syringe. After cleaning, the next step is to ensure that the syringe is sealed by mounting it on a rail and spraying liquid through an injector.
10 Test Modes - Injector cleaning kit adopts ultrasonic powerful cleaning technology, strong cleaning ability. It has 10 test modes ultrasonic cleaning; idle test; medium speed test; high speed test; acceleration test; variable speed test; leakage test; idle injection test; medium speed injection test; high speed injection test.

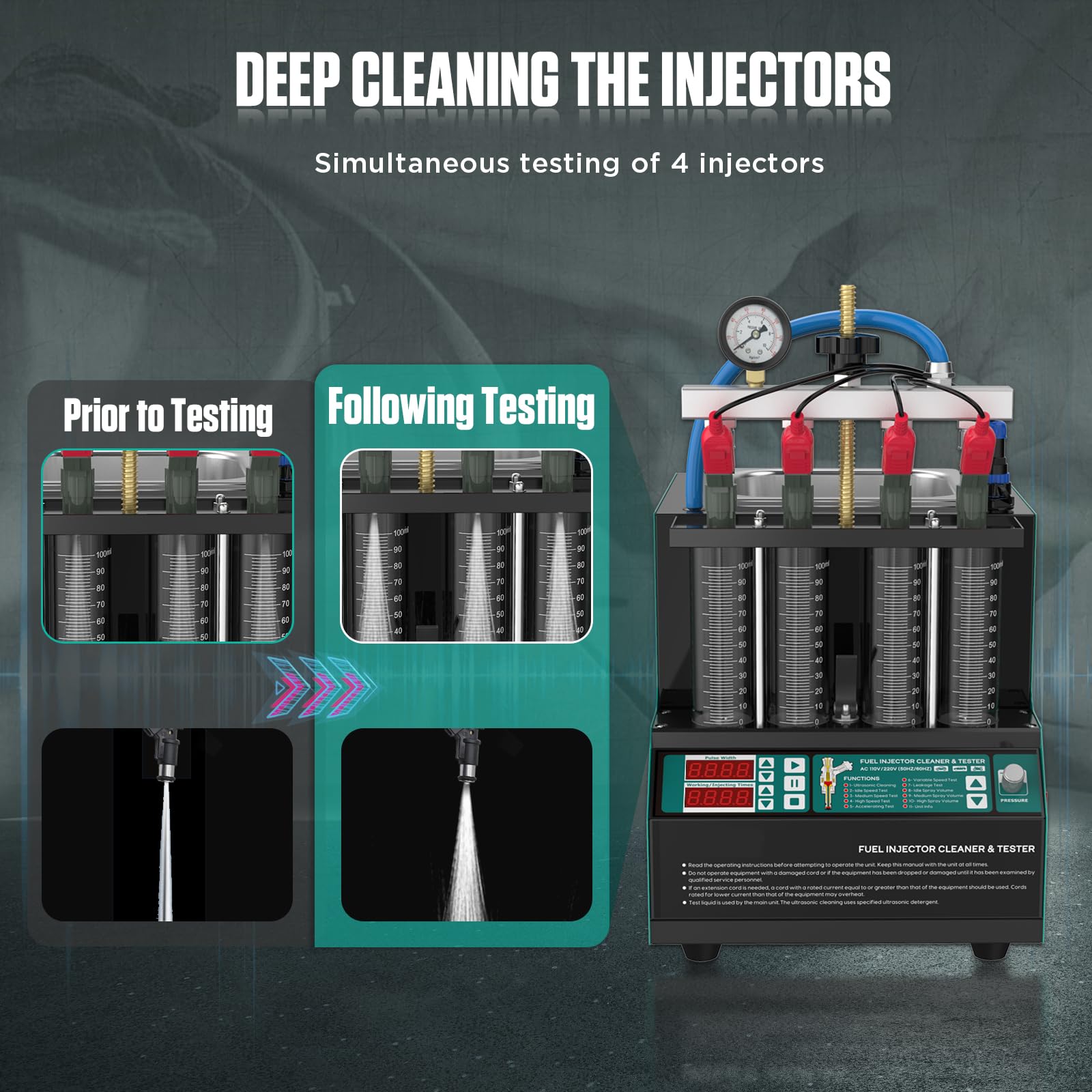

Multifunction Ultrasonic Injector Cleaning Device - 1, injector cleaning test Injector cleaning test can be done once, can also be more than one injector at the same time. 2, uniformity test can test the uniformity of injector test fluid in each cylinder to observe. 3, leakage test can be in the simulation of high pressure environment to test the sealing of the injector and the drip situation. 4, Injection volume test.

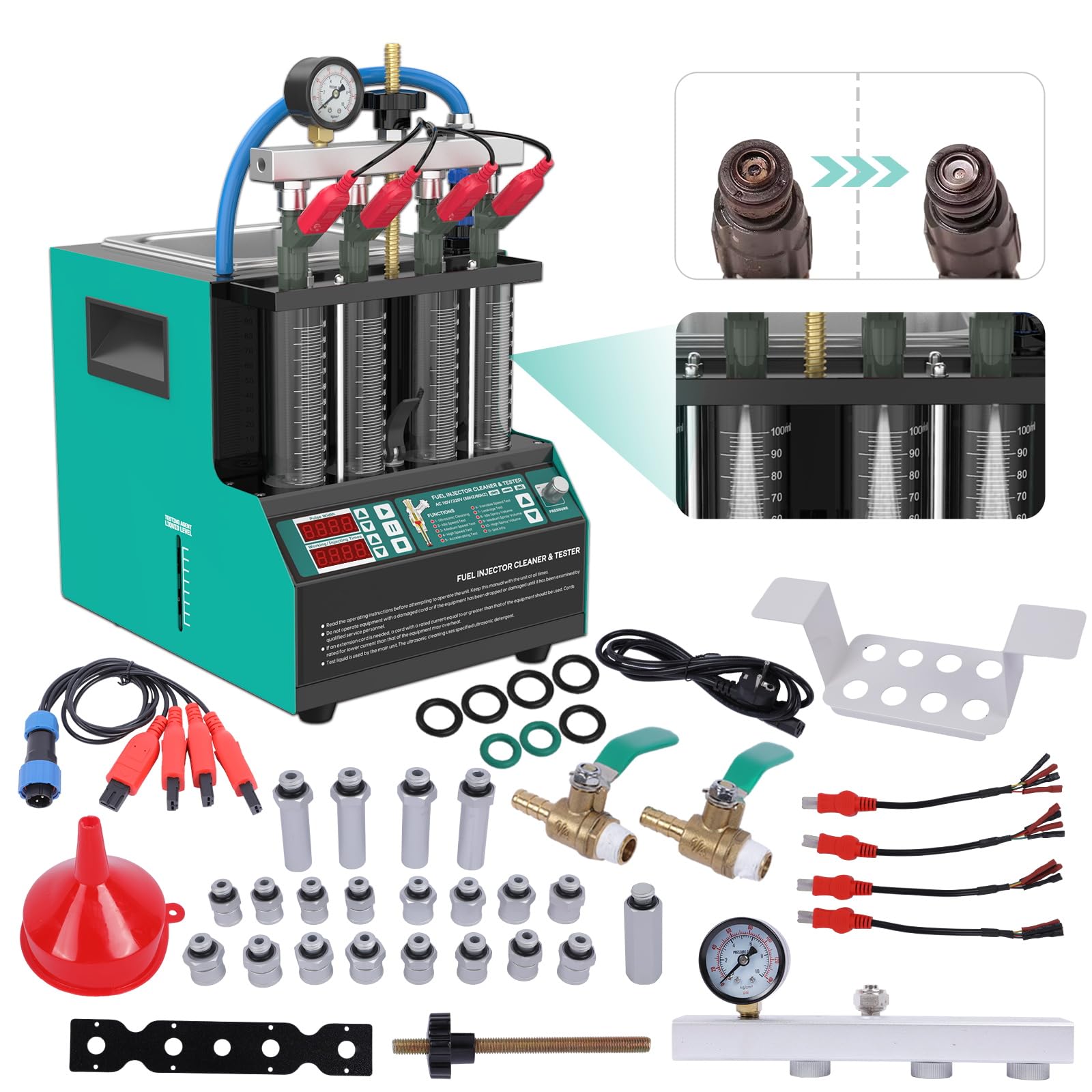

4-Cylinder Injector Cleaner - One tank quickly cleans all fuel injectors, individual or simultaneous cleaning of several injectors possible. This injector cleaner uses interchangeable composite fittings and is suitable for all types of vehicles. The injection test time, operating frequency, number of injections and minimum switching cycles can be set as required. This device is a necessary and preferred equipment in the automotive repair industry

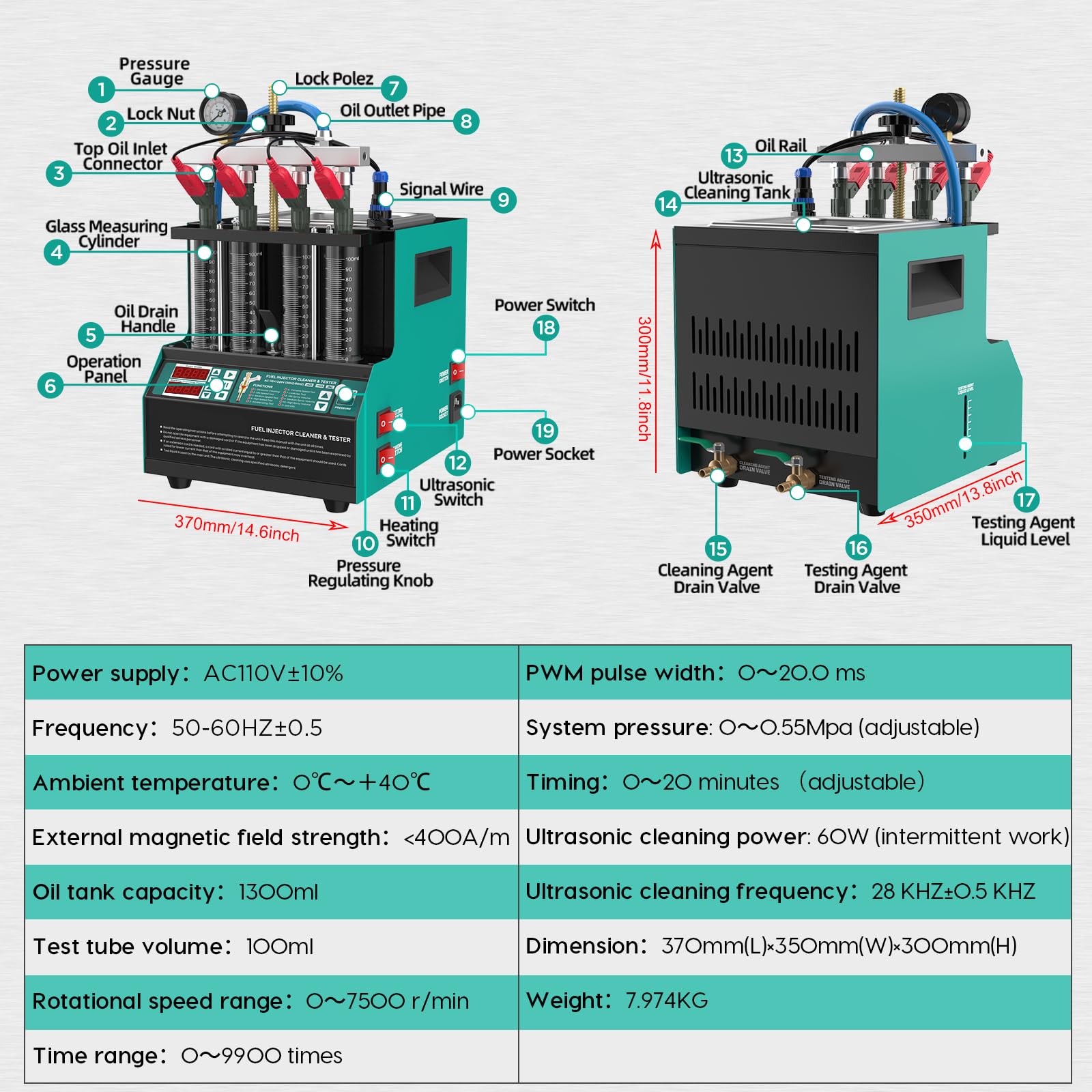

Intuitive Cleaning Process The fuel injector cleaning kit has an intuitive design LED display screen, pressure gauge, glass tube, liquid meter and control panel allow you to monitor the entire cleaning process in real time. The panel has an LCD touch screen that allows you to set all parameters and select the tests/operations to be performed. You can view the fuel dynamics and injector characteristics throughout the process.
