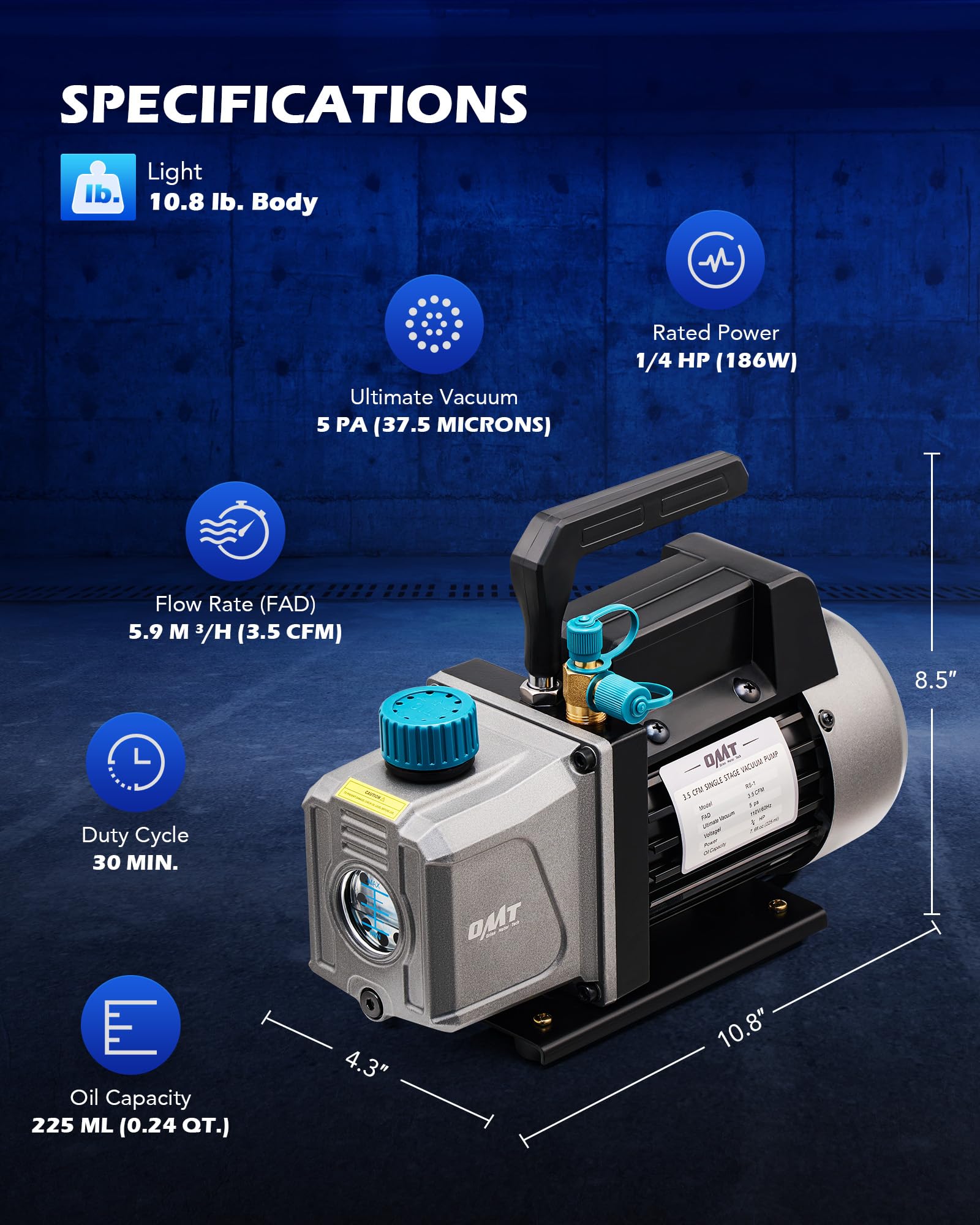

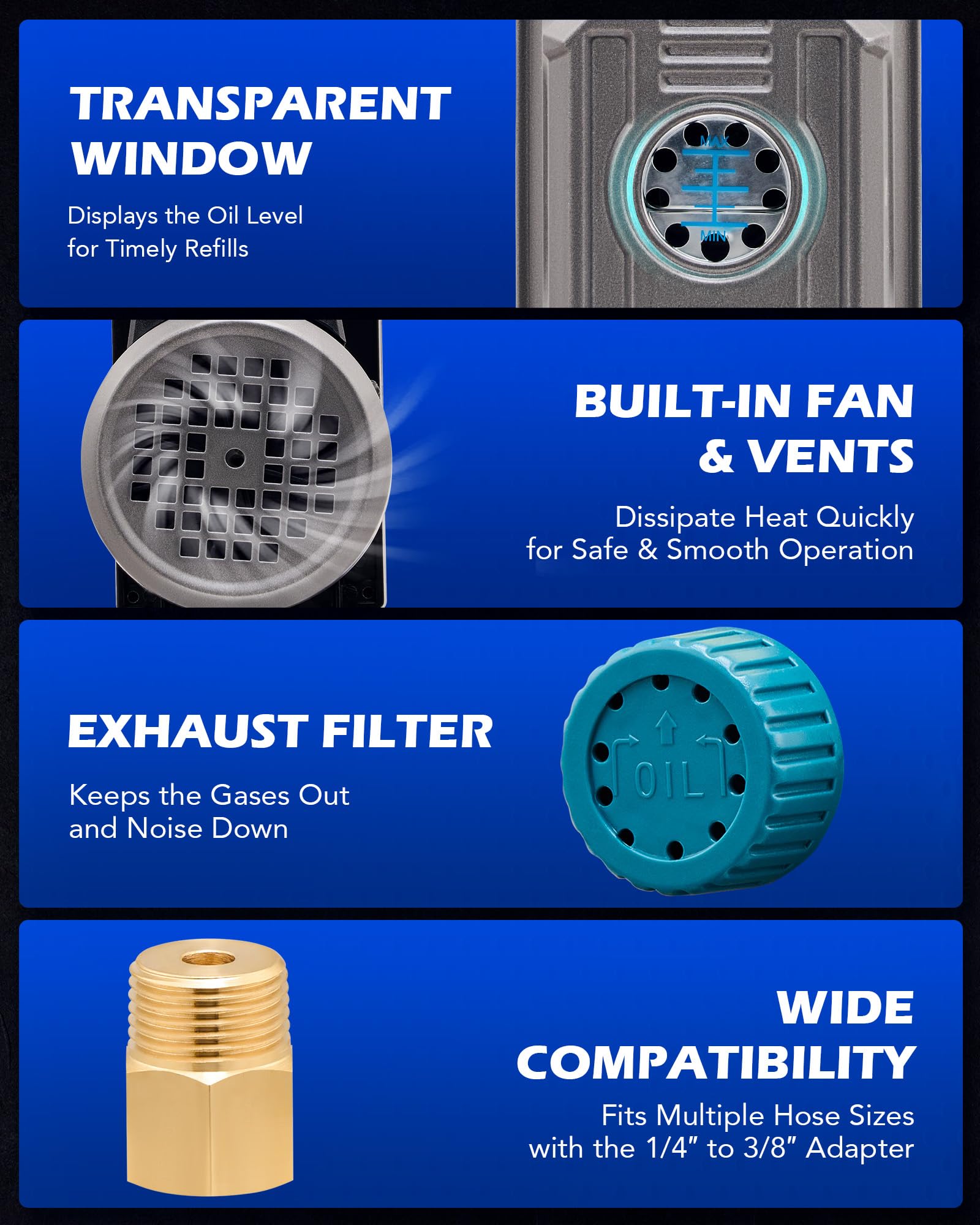

Previous page Next page 1 ALL-COPPER MOTOR 2 COMPACT & PORTABLE 3 WIDE COMPATIBILITY 4 MULTIPURPOSE OIL CAP 5 FRIENDLY REMINDER Previous page Next page 1 1.5 GAL. VACUUM CHAMBER 2 SILICONE OIL-FILLED GAUGE 3 5 FT. REINFORCED HOSE 4 12 MM TEMPERED GLASS LID 5 NONSLIP MAT Previous page Optimal performance is ensured by effective cooling with a built-in fan and large exhaust ports. Easily monitor oil levels with the clear window, ensuring timely refills for smooth operation. Quickly drain oil by removing the cap with your M4 hex wrench—keeping maintenance simple. Enjoy stable, quiet operation in any setting with this pump's shockproof base and rubber feet. Aluminum alloy casing with corrosion-resistant powder coating ensures lasting performance. Next page 1 FAST HEAT DISSIPATION 2 CONVENIENT SIGHT GAUGE 3 EASY OIL DRAINAGE 4 SHOCKPROOF BASE 5 BUILT TO LAST Previous page Next page 1 STAINLESS STEEL CHAMBER 2 VARIOUS APPLICATION 3 EASY OPERATION 1.5 GALLON VACUUM CHAMBER AND 3.5 CFM PUMP SET Pump Type Single Stage Rotary Pump Flow Rate (FAD) 3.5 cfm (5.9 m³/h) Pump Rated Power 1/4 hp (186W) Voltage 110V / 60HZ Duty Cycle 30 min. Ultimate Vacuum 37.5 Microns (5 Pa) Intake 1/4 in. SAE & 1/2 in. ACME Pump Oil (incl.) 0.26 qt. (250 mL) Hose (incl.) 1/4 in. × 5 ft. Hose Material PVC, Steel Wire Chamber Material 201 Stainless Steel Chamber Capacity 1.5 Gal. (5.7 L) Chamber Thickness 0.65 mm Chamber Gauge Range −30 to 0 inHg (−1 to 0 bar) Lid Material 12 mm Tempered Glass Other Accessories 2x Air Filters, 1x 1/4″ to 3/8″ Adapter, 1x Nonslip Pad, 1x Pair of Gloves, 1x Teflon Tape, 1x Screwdriver, 1x Wrench DEGASSING CHAMBER SET 1.5 Gal. Chamber Set Add to Cart 2 Gal. Chamber Set Buying Options 3 Gal. Chamber Set Buying Options 5 Gal. Chamber Set Add to Cart Customer Reviews 4.1 out of 5 stars 100 3.9 out of 5 stars 199 3.9 out of 5 stars 199 3.9 out of 5 stars 199 Price $89.99$89.99 $113.99$113.99 $123.49$123.49 $148.99$148.99 Chamber Capacity 1.5 Gal. (5.7 L) 2 Gal. (7.6 L) 3 Gal. (11.4 L) 5 Gal. (18.9 L) Chamber Material 201 Stainless Steel 201 Stainless Steel 201 Stainless Steel 201 Stainless Steel Flow Rate (FAD) 3.5 cfm (5.9 m³/h) 3.5 cfm (5.9 m³/h) 3.5 cfm (5.9 m³/h) 3.5 cfm (5.9 m³/h) Rated Pump Power 1/4 hp (186W) 1/4 hp (186W) 1/4 hp (186W) 1/4 hp (186W) Ultimate Vacuum 37.5 Microns (5 Pa) 37.5 Microns (5 Pa) 37.5 Microns (5 Pa) 37.5 Microns (5 Pa) Hose Length 5 ft. (1.5 m) 5 ft. (1.5 m) 5 ft. (1.5 m) 5 ft. (1.5 m) Lid Material 12 mm Tempered Glass 12 mm Tempered Glass 12 mm Tempered Glass 12 mm Tempered Glass

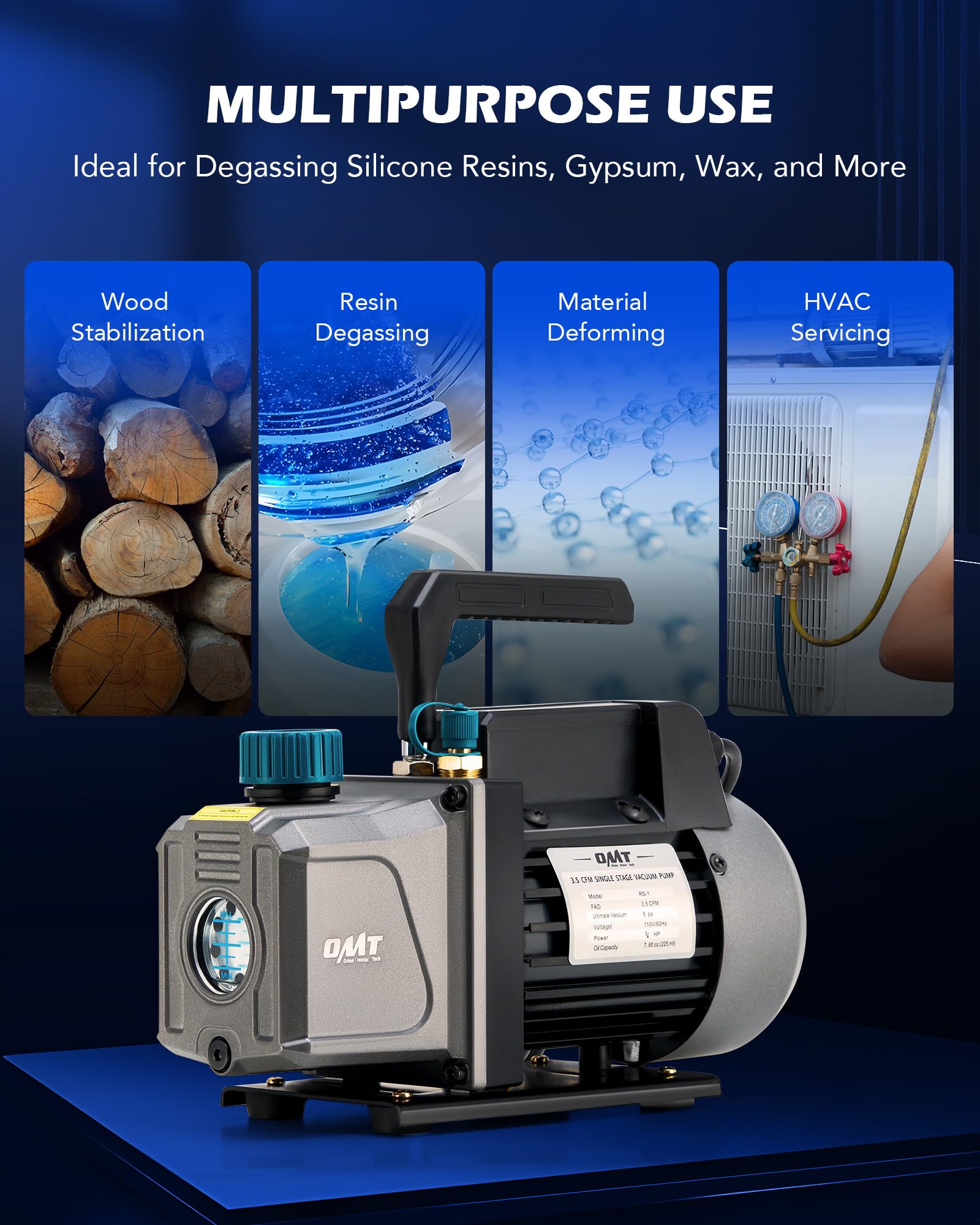

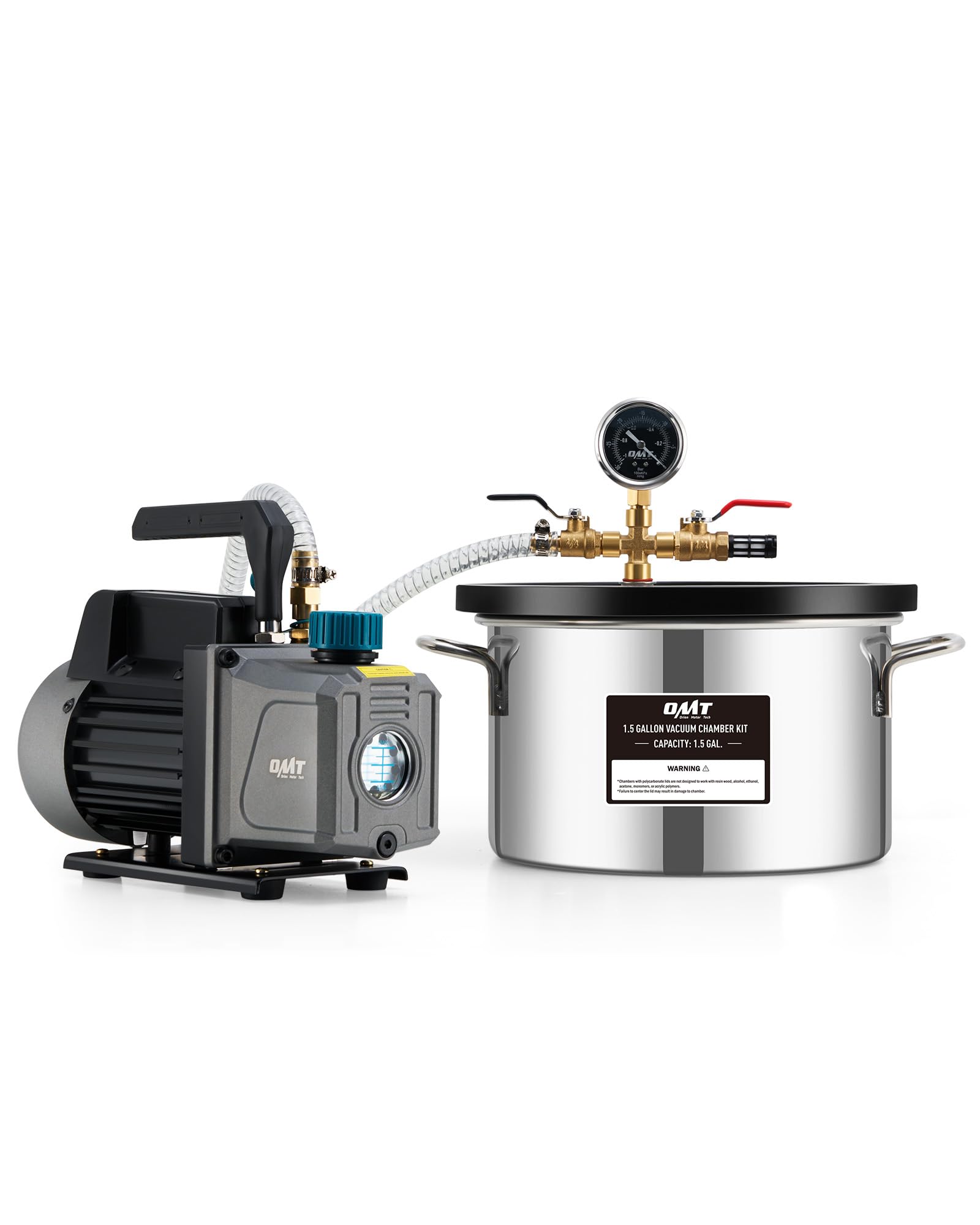

Professional Vacuum Chamber Set This comprehensive degassing kit by Orion Motor Tech includes a powerful 1/4 hp vacuum pump, a 1.5 gallon chamber, a wire hose, and all the accessories needed for easy wood stabilization, silicone degassing, and various molding and casting applications.
High Efficiency Vacuum Pump Equipped with a robust all-copper motor, this vacuum pump ensures efficient evacuation at a 3.5 cfm flow rate. Its reinforced aluminum alloy casing efficiently dissipates heat and resists corrosion, and brass-fitted tethered safety caps prevent oil leaks during transport.

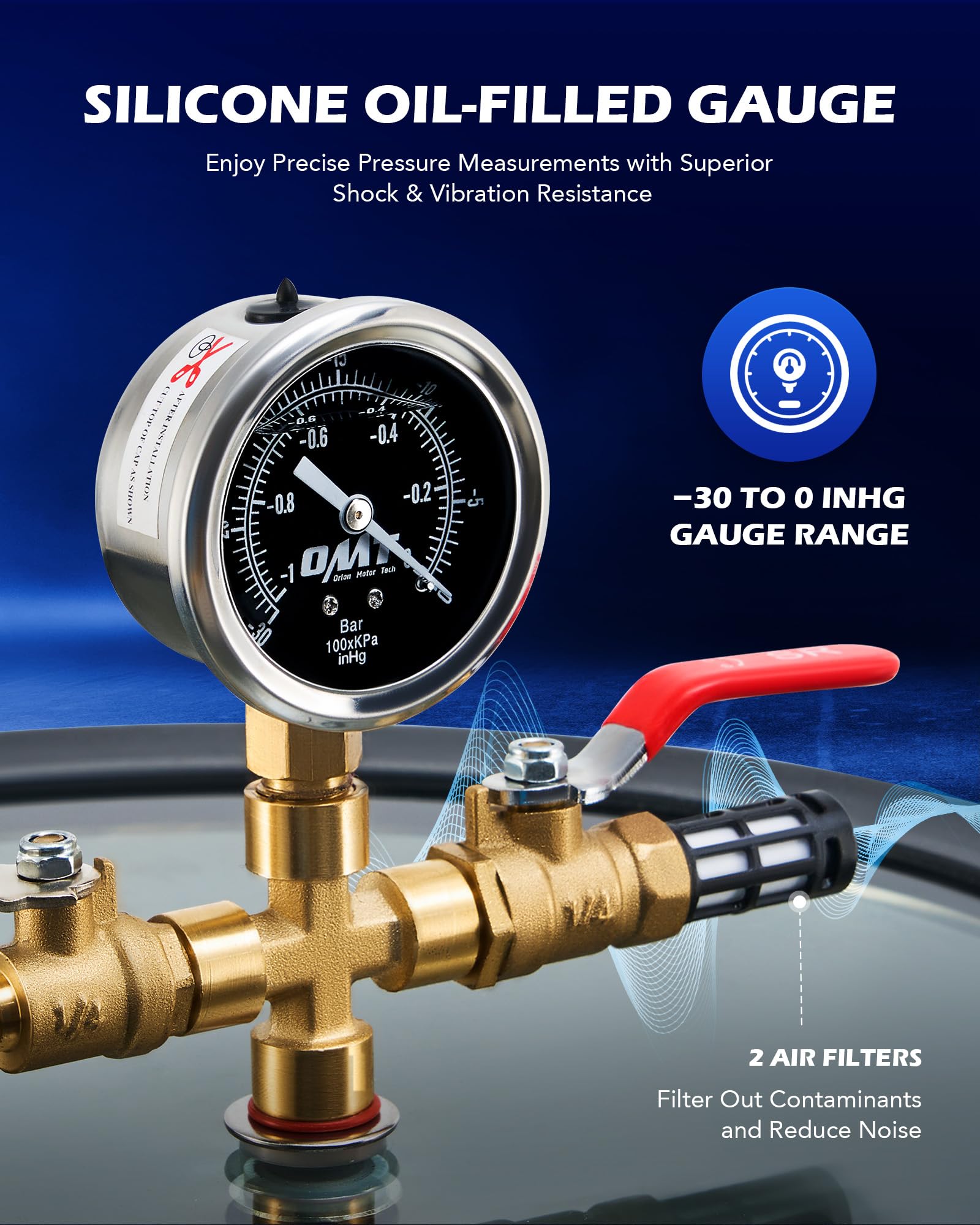

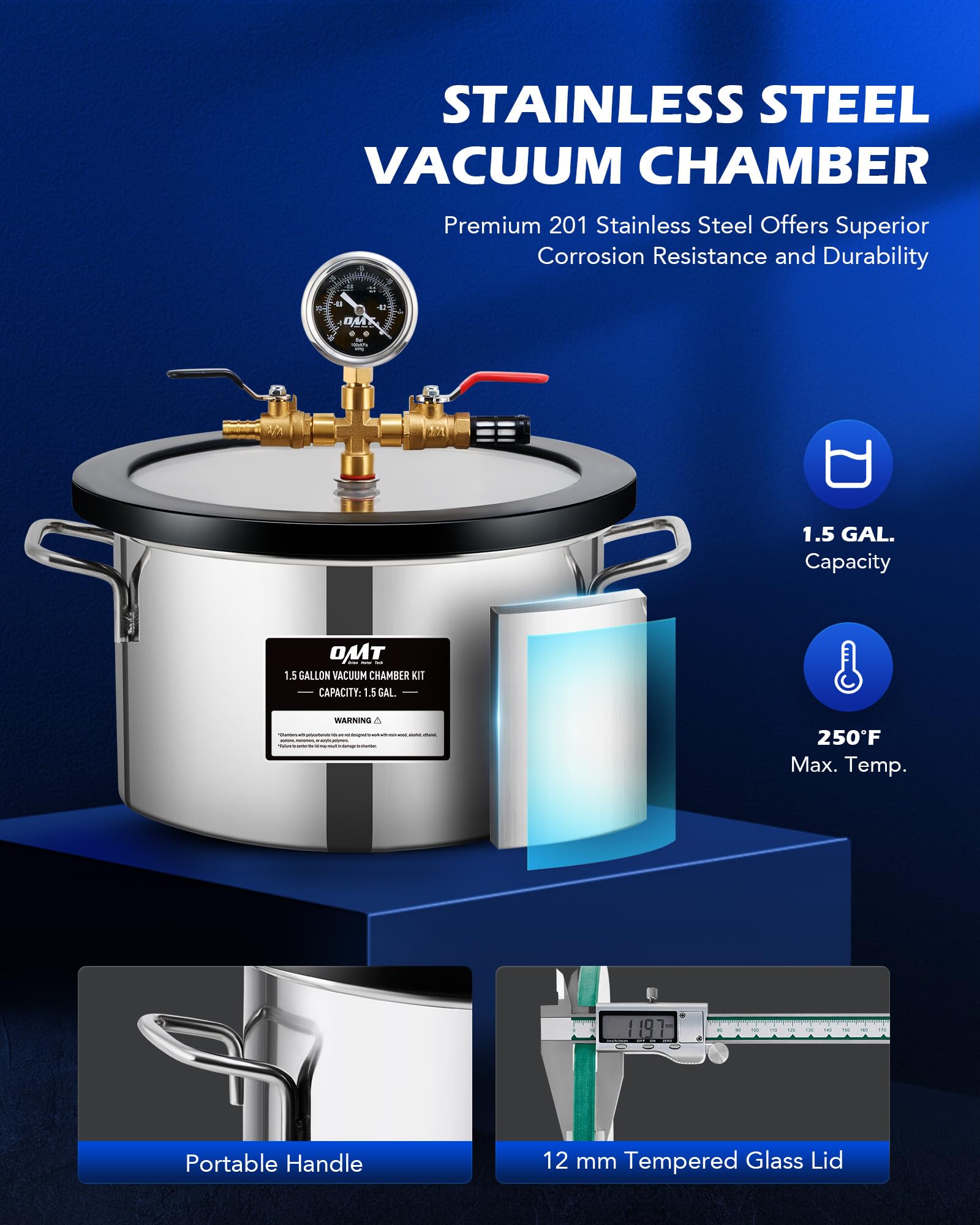

1.5 Gallon Stainless Steel Chamber Made of brushed 201 stainless steel, this vacuum chamber withstands pressure, corrosion, and heat up to 250°F. The transparent tempered glass lid and liquid-filled gauge allow easy monitoring of the degassing process, while two air filter and a nonslip pad help minimize noise.
Effortless Degassing Operation Simply connect the hose from the pump to the chamber, and easily manage the degassing process using two user-friendly ball valves. Stay in control by monitoring the vacuum level with the attached pressure gauge for precise control. Plus, a detailed manual is included for your convenience.

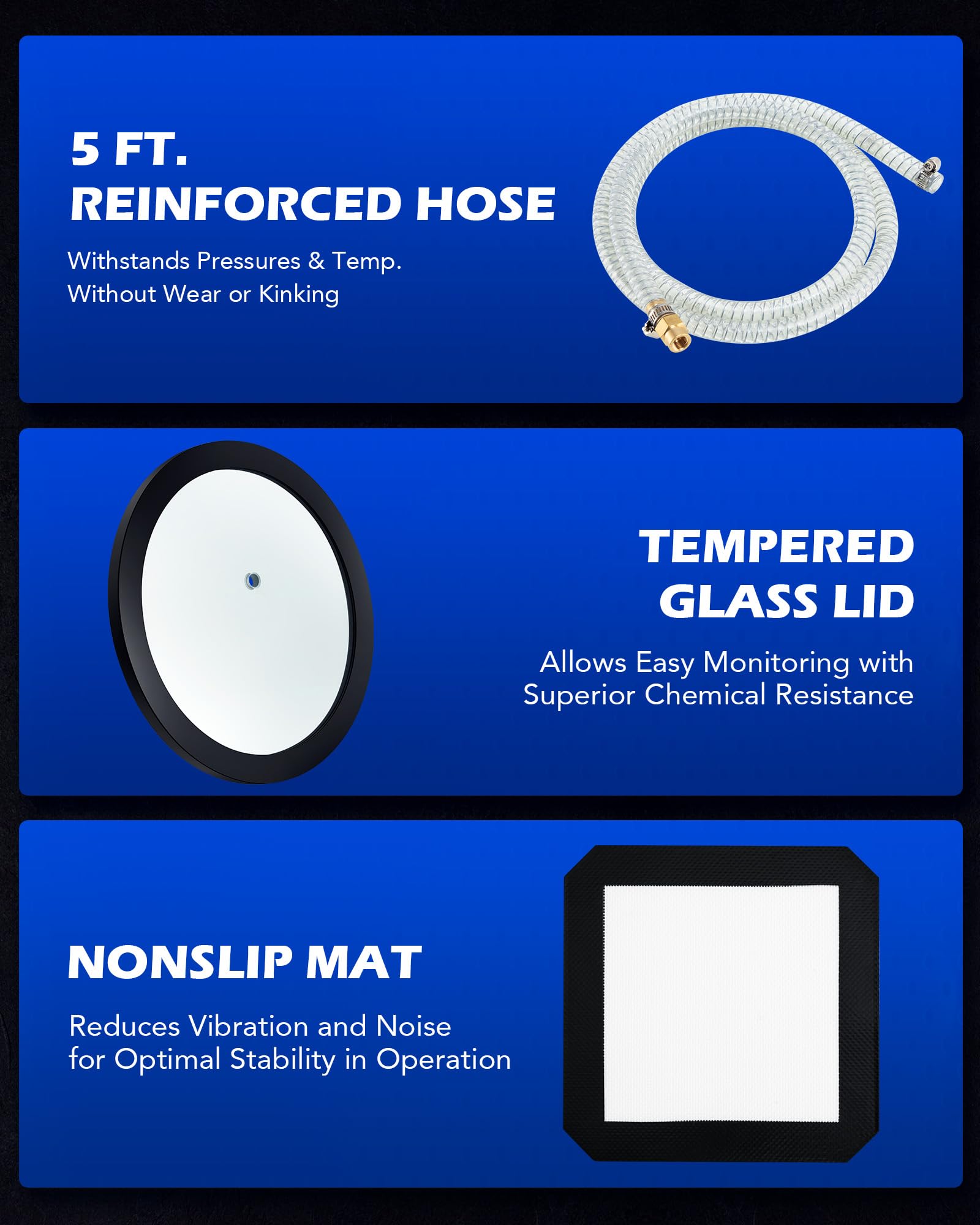

Service-Ready Pump Package Our vacuum pump and chamber set comes with the necessary lubricating and absorptive oil for the pump, a 5-foot reinforced hose, and various fittings for a solid connection. With pump inlets and the included adapter, it easily works with 1/4, 3/8, and 1/2-inch HVAC hoses for all your service needs.
