NOTE: We promise a 3 years after-sales service. If there is any problem with the fuel injector tester, please let us know. Don't worry! We will send you a replacement. Electrical Specifications: Power supply : 12V battery or DC 12V (recommended 2A) power adapter Working conditions: 0°C-40°C; relative humidity ≤80% Storage conditions: -20°C-50°C; relative humidity ≤85% Unit Size: 120*80*25mm Weight: 0.34kg WARMLY NOTE: When using the fuel injector tester cleaner, please do not expose the cover and plastic housing to cleaning agents to avoid damage. Mode 0: Standby state, no output Mode 1: Single Pulse Low Power Mode: when the PULSE key is pressed, the fuel injector tester will send out a pulse with a pulse width of about 255 milliseconds. Mode 2: Short Pulse Low Power Mode: the fuel injector tester will send out 50 pulses with a pulse width of about 7 milliseconds. Mode 3: Long Pulse Low Power Mode: the fuel injector cleaner tester will send out 100 pulses, and the pulse width is about 3.5 milliseconds. Mode 4: Continuous Pulse Low Power Mode: the fuel injector tester will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds. Mode 5: Single Pulse High Power Mode: the injector tester will send out a pulse with a pulse width of about 255 milliseconds. Mode 6: Short Pulse High Power Mode: the injector tester will send out 50 pulses with a pulse width of about 7 milliseconds. Mode 7: Long Pulse High Power Mode: the injector cleaner tester will send out 100 pulses, and the pulse width is about 3.5 milliseconds. Mode 8: Continuous Pulse High Power Mode: the fuel injector tester will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds. Note: During the pulse output period, the MODE SET button is invalid, and the working mode can only be selected by pressing the PULSE button again to terminate the output. 2 PULSE OUTPUT TERMINALS DC INPUT PORT ( 12V ) STRONG ALLIGATOR CLIP Operating Instructions: Turn off the car's engine.Remove the wire plug of the vehicle injector to be tested, and then connect the two pulse output terminals of the fuel injector tester to the vehicle injector.Then connect the red clip of the injector tester to the positive terminal of the 12V car battery, and connect the black clip of the injector tester to the negative terminal of the car battery.Insert the DC plug into the port of the fuel injector tester.Press MODE SET key to select the desired pulse signal output mode, and the screen will display the currently selected mode. NOTE: 1. Before using this fuel injector tester, the engine of the car must be turned off. 2. Do not smoke or ignite near the car. 3. Do not splash the fuel of the car on the hot engine parts. 4. Only use this injector tester in a ventilated place. Do not inhale exhaust fumes from vehicles and vapours. 5. Do not get close to any rotating (or moving) parts of the car, and do not touch any heat-generating parts of the car. 6. Do not short-circuit the positive and negative poles of the car battery. 7. Do not touch any car parts with dangerous voltage. 8. Always follow the warnings, cautions and related maintenance instructions in the vehicle maintenance manual. 9. Wear qualified goggles. 10. After the test is complete, all disconnected vehicle connections should be properly restored.

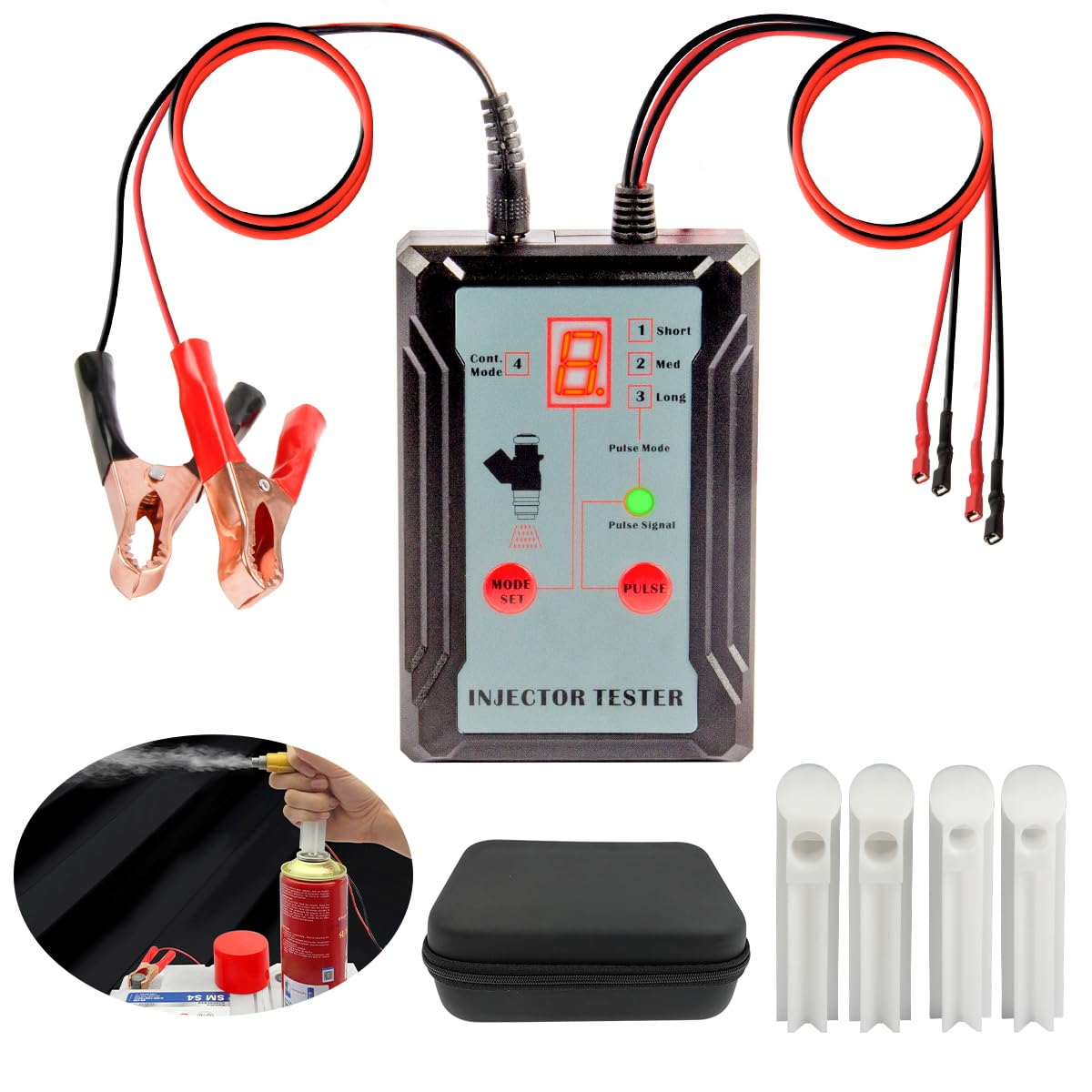

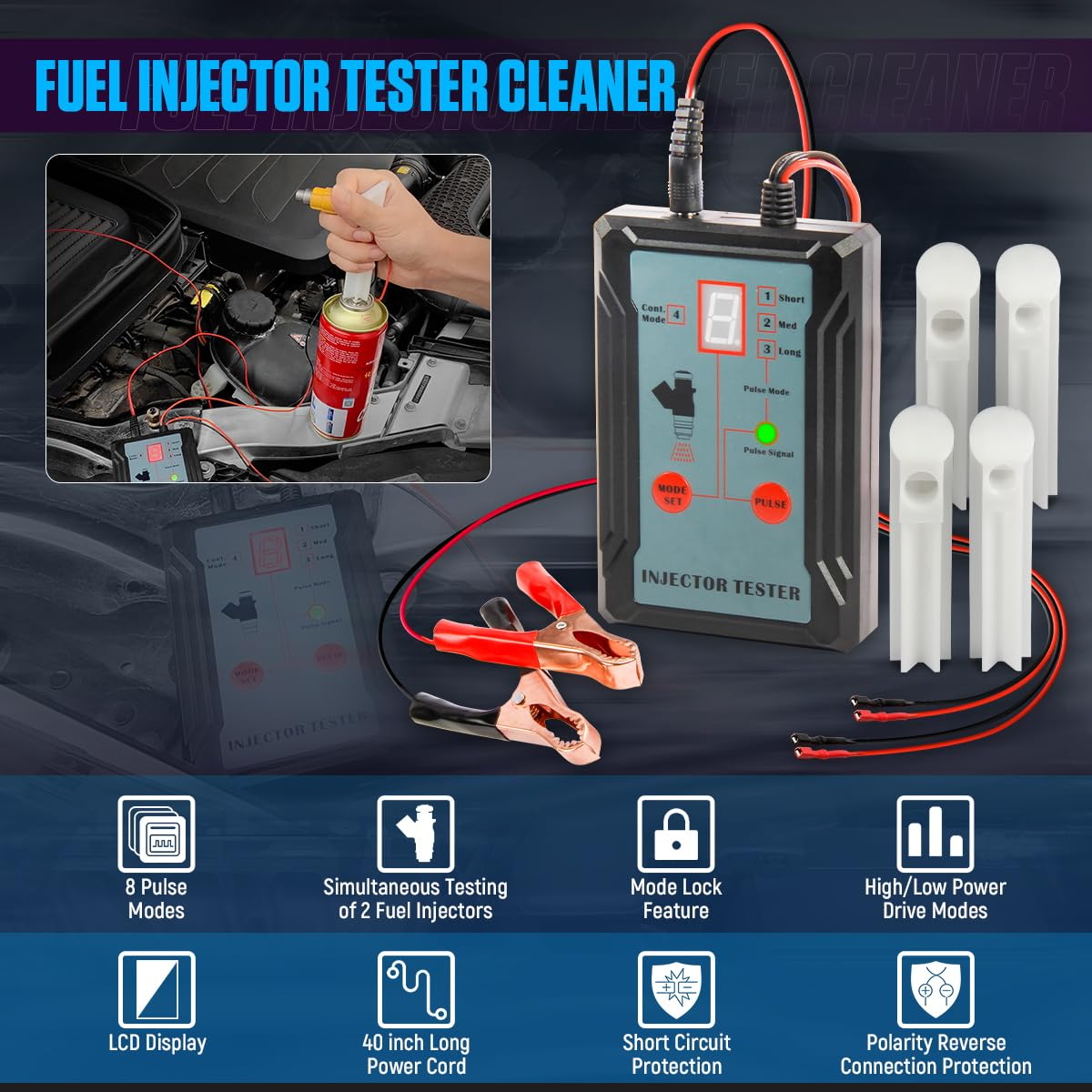

【Support Simultaneous Testing of 2 Injectors】Fuel injector tester cleaner can help you diagnose and clean injectors, easily identify common faults such as stuck, blocked, leaked or burnt-out conditions of the fuel injector. Compared with other injector testers with only one pair of pulse output teminals(black&red test lead), our fuel injector tester has 2 pulse output teminals(two pairs of test leads), which can test two fuel injectors at the same time for comparison.

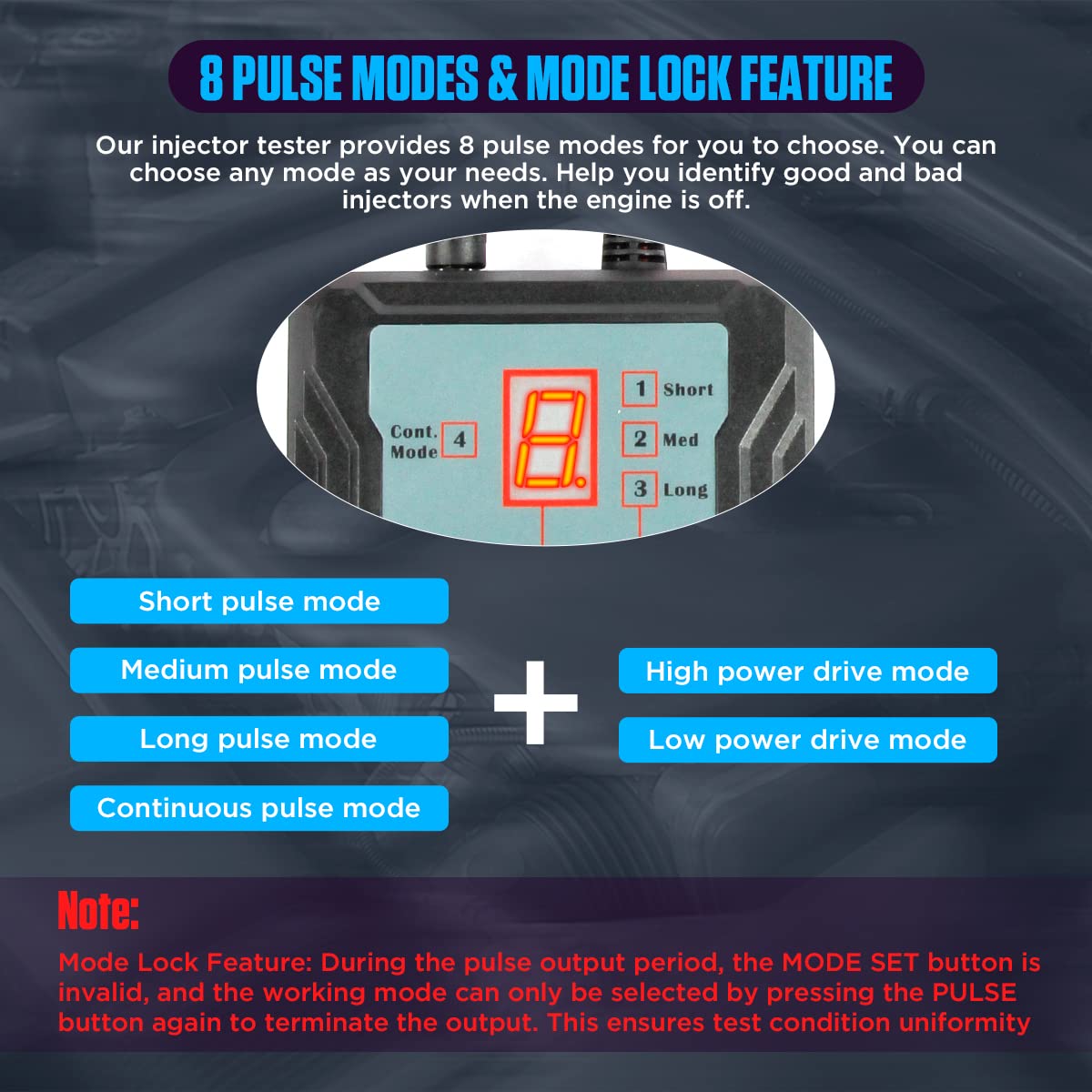

【8 Pulse Modes & Mode Lock Feature & LCD Display】The fuel injector cleaner tester is designed with LCD display and 8 pulse modes(Composed of 4 pulse signal output modes and 2 output voltage levels Short/ Medium/ Long/ Continuous pulse modes + High/Low power drive modes) to help you to identify good and bad injectors when the engine is off. You can choose any mode as your needs. And its mode lock features ensures test condition uniformity.
【40inch Long Power Cord & 20inch Test Lead】The length of power cord is up to 40inch/100cm and its test lead is 20 inches long, which is more convenient for you to connect and use. The wires are made of superior silica gel, which has better high and low temperature resistance. Injector tester is powered by 12V battery or an external DC 12V (recommended at least 1.5A) power adapter. It works with engine off and can work with any fuel pressure tester(NOTE Gasoline car only, NOT the diesel engine).

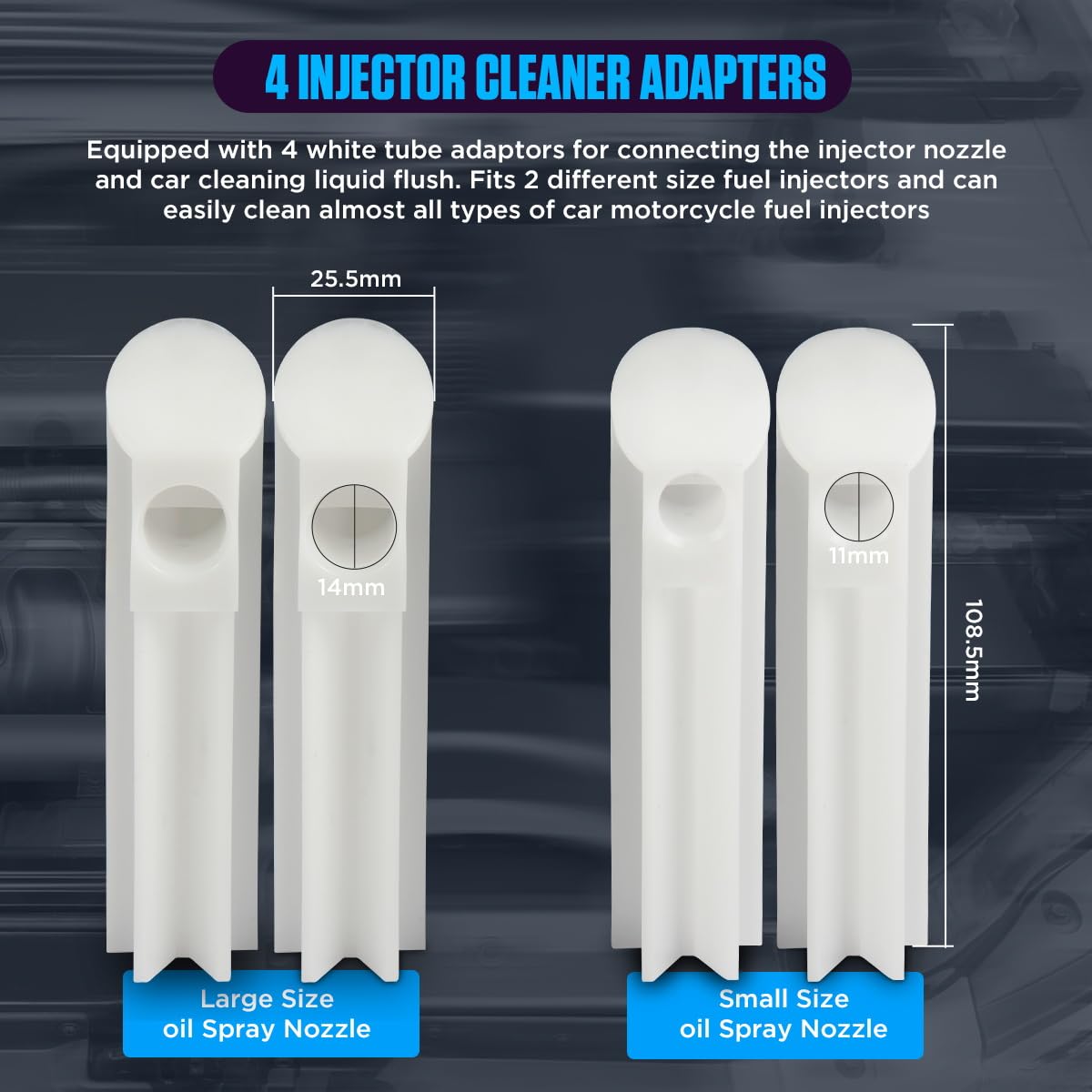

【Equipped with 4 Injector Cleaner Adapters】The fuel injector tester cleaner is equipped with 4 white tube adaptors for connecting the injector nozzle and car cleaning liquid flush. These 4 fuel injector cleaner adaptor fits 2 different size fuel injectors and can easily clean almost all types of car motorcycle fuel injectors( except Cylinder Direct-Injection Nozzle ).

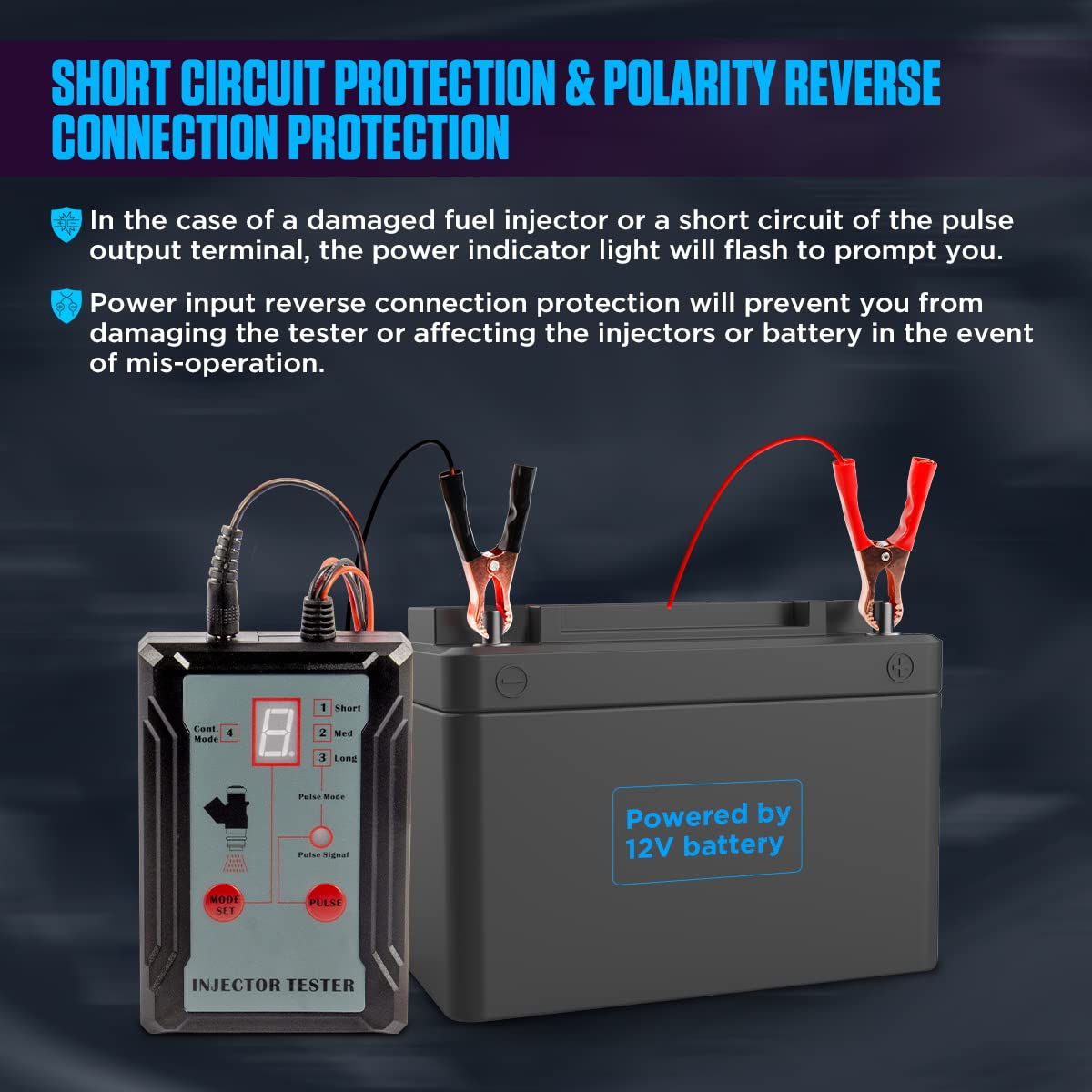

【Short Circuit Protection & 3-Year Warranty】Our fuel injector cleaner and tester is deigned with power input reverse connection protection and output short circuit protection function. In the case of a damaged fuel injector or a short circuit of the pulse output terminal, the power indicator light of the fuel injector cleaner tool will flash to prompt you. We promise 3 years warranty. For the damage caused by non-human factors, welcome to contact us. We will send you a replacement.
